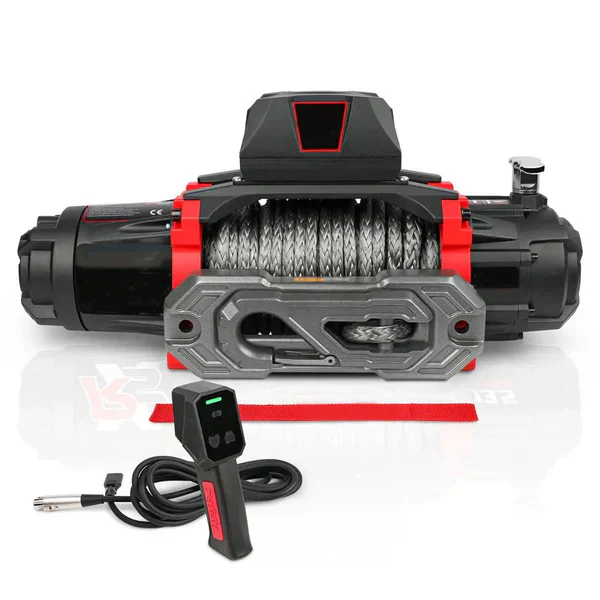

This 12V electric winch delivers a robust 13,500 lbs pulling capacity, making it perfect for off-road recovery, towing, and heavy-duty vehicle operations. Designed for trucks, SUVs, and 4WD vehicles, it provides reliable power when navigating mud, snow, sand, or steep inclines.

Equipped with a durable synthetic rope, this winch is lightweight, corrosion-resistant, and safer than traditional steel cables. The rope minimizes recoil risks and ensures smooth, controlled recovery operations in challenging environments.

The winch features a convenient 2-in-1 wireless remote, allowing you to operate it safely from a distance or directly at the vehicle. Its high-performance motor and reinforced internal components ensure long-lasting, reliable performance under demanding conditions.

Easy to install and operate, this electric winch is suitable for both professional off-road enthusiasts and weekend adventurers. Whether for vehicle recovery, towing, or utility tasks, it is a dependable addition to any truck, SUV, or 4WD vehicle setup.

SPECIFICATIONS

Rated Line Pull	13500 lbs (6123 kg)
Motor	6.6 HP Series Wound
Gear Train	3-Stage Planetary
Gear Reduction Ratio	265:1
Brake	Automatic In-The Drum
Control	2 in 1 Multi-Functional Remote Control
Battery	12V DC, Minimum 650 CCA
Battery Cables	3.5 Gauge, 6' (1.8 m)

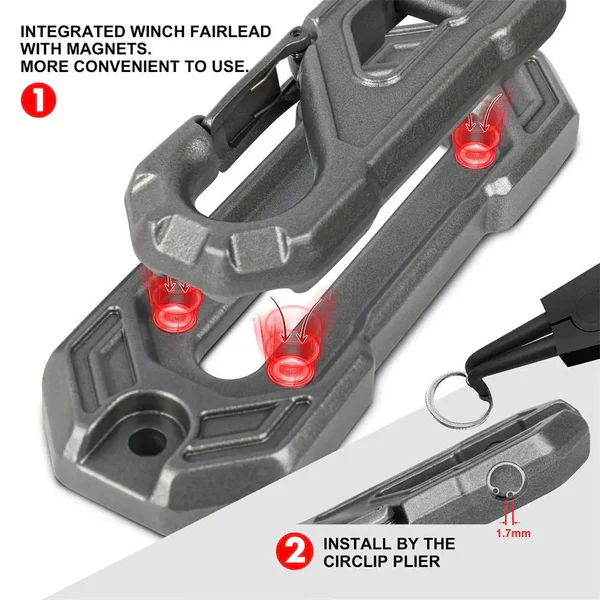

Fairlead	High-Grade Aircraft Aluminum Fairlead
Cable Type	Synthetic Rope
Cable Size (D x L)	3/8" X 92' (9.5 mm X 28 m)
Overall Dimensions (L x W x H)	23.6" X 13.4" X 10.2" (600 mm X 340 mm X 260 mm)
Drum Size (D x L)	2.5" X 9" (64 mm X 228 mm)
Bolt Pattern	10" X 4.5" (254 mm X 114.3 mm)
Weight	59.50 lbs (27.00 kg)
Waterproof Rating	IP67
Line Speed (Max Line Pull)	3.8 fpm (1.05 mpm)
Amp Draw (Max Line Pull)	425 (@ 12V)
Application	Truck/Jeep/SUV

IN THE BOX

1 X 13500 LBS Winch
1 X Multi-Functional Remote Control
1 X Aluminium Fairlead
1 X Control Box
1 X Battery Wire Harness
1 X Hook
1 X Set of Bolts
1 X User Manual

SAFETY TIPS

Using a winch can be dangerous, so be sure to follow the following tips to minimize the risk of personal injury or equipment damage:

Be sure to wear thick work gloves when handling winches, as cables can easily damage your hands.
When rewinding the cable, do not let the cable pass through your hand.
If you are using trees as anchors, always wrap tree trunk protectors near the bottom of the ground; Wrap it too high, and there's a lot of leverage that can uproot the tree.
For extreme winch conditions, use a heavy blanket, drag or winch to weigh the strained cable. This helps absorb the released energy and makes it more likely to fall to the ground if it is released suddenly and suddenly.
When using a winch with others, use a set of agreeing gestures to prevent communication errors.
Do not stand on or straddle the tight winch lines and avoid standing between the towed object and its anchor. If the line gets stuck and hits you, you can easily trip and risk serious injury.
Check the condition of winch regularly. Before each cross-country drive, check the cable for corrosion, kink or wear, and check the surface of the roller.
Clean the winch regularly. If it is dirty, damage will be harder to detect and the dirty metal will rust faster.
Never hook the cable on itself as this can cause damage and increase the risk of the clasp. Always use a tree trunk protector instead.
Always make sure the hook opening is facing up. If the hook fails, these forces are on the ground and not in the air.

Electric winch

12V Electric Winch 13,500 LBS with Synthetic Rope & 2-in-1 Wireless Remote for Off-Road, Towing, and Trucks

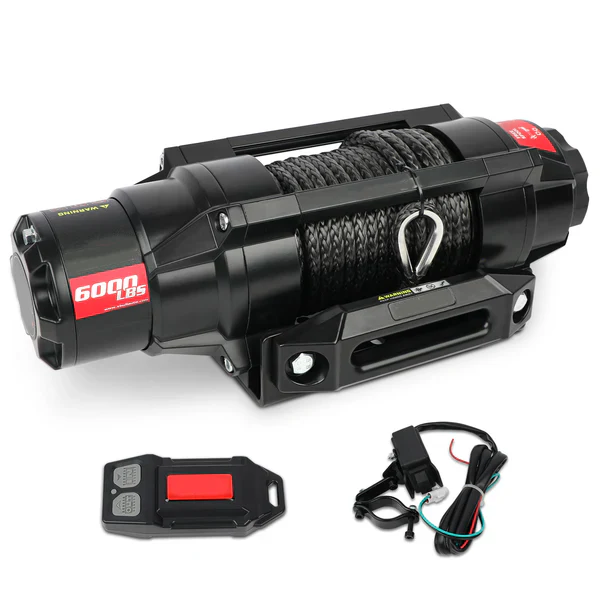

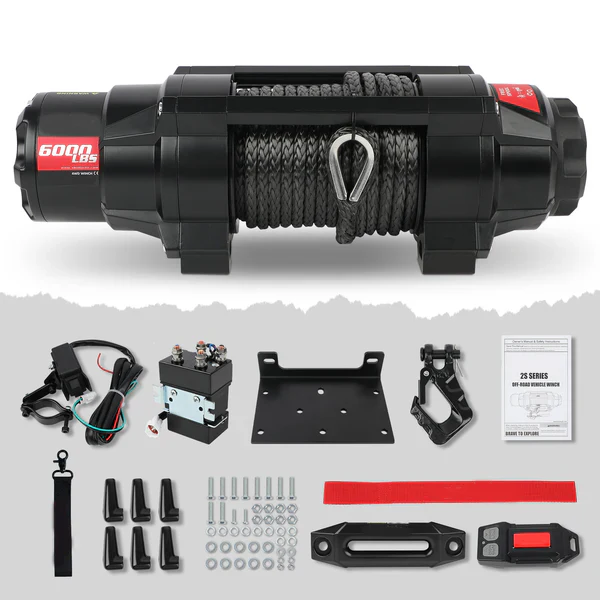

12V 2S Series Electric Winch 6,000 LBS with 15M Synthetic Rope for ATV, UTV, Boat & Trailer

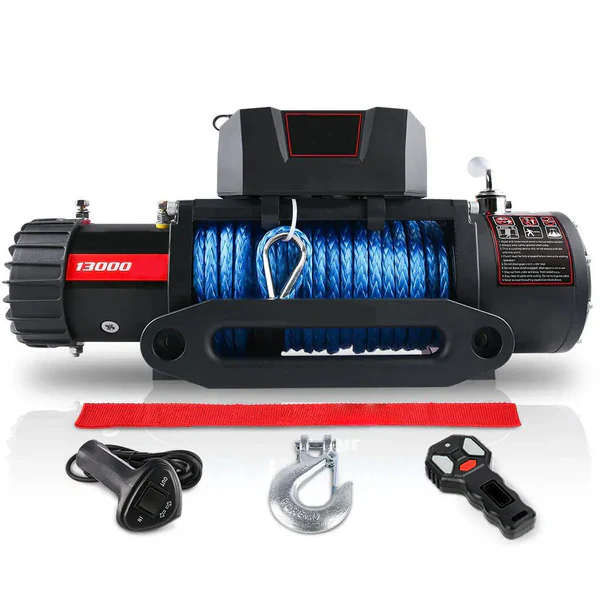

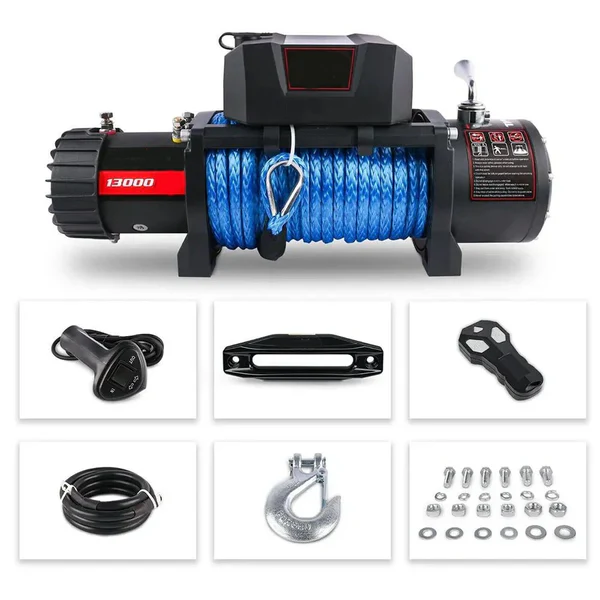

12V Electric Winch 13,000 LBS with Synthetic Rope for SUV, Jeep, Truck & 4WD

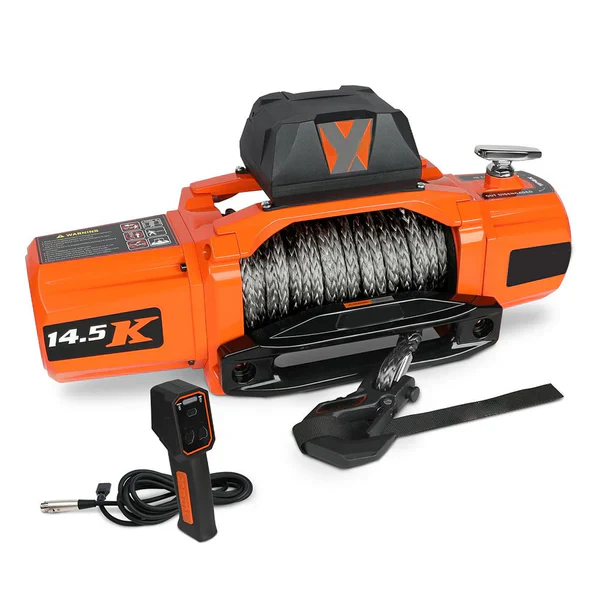

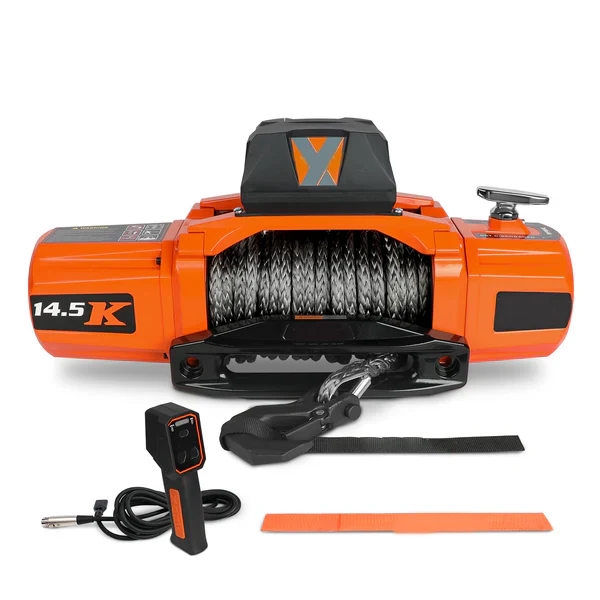

12V Electric Recovery Winch 14,500 LBS with Synthetic Rope for SUV, Jeep, Truck & 4WD
